Hytera PD66X ( Digital & Analog System )

Hytera PD66X ( Digital & Analog System )
Product Code: Hytera PD66X ( Digital & Analog System )
Availability: In Stock
Price: IDR0
Qty:
   - OR -
General
Frequency Range UHF: 400-527MHz , VHF: 136-174MHz
Channel Capacity 1024
Channel Spacing 25/20/12.5KHz
Zone Capacity 64
Operating Voltage 7.4V (rated)
Battery 1500mAh/2000mAh
Battery Life (5/5/90 ) Analog: about 11 Hours
Digital: about 16 Hours
Frequency Stability ±0.5ppm
Antenna Impedance 50Ω
Dimensions 122 x 54 x 27mm
Weight 310g
Transmitter
RF Power Output VHF High power: 5W
VHF Low power: 1W
UHF High power: 4W
UHF Low power: 1W
FM Modulation 11K0F3E @ 12.5KHz 14K0F3E @ 20KHz 16K0F3E @ 25KHz
4FSK Digital Modulation 12.5kHz Data Only: 7K60FXD 12.5kHz Data & Voice: 7K60FXW
Conducted/Radiated Emission -36dBm<1GHz -30dBm>1GHz
Modulation Limiting ±2.5KHz @ 12.5KHz ±4.0KHz @ 20KHz ±5.0KHz @ 25KHz
FM Noise 40dB @ 12.5KHz 43dB @ 20KHz 45dB @ 25KHz
Adjacent Channel Power 60dB @ 12.5KHz 70dB @ 20/25KHz
Audio Response +1 ~ -3dB
Audio Distortion ≤3%
Digital Vocoder Type AMBE++ or SELP
Digital Protocol ETSI-TS102 361-1，2&3
Receiver
Sensitivity Analog 0.22μV (12dB SINAD) 0.22μV (Typical) (12dB SINAD) 0.4μV (20dB SINAD)
Digital 0.22μV /BER5%
Adjacent Selectivity TIA-603: 60dB @ 12.5KHz / 70dB @ 20&25KHz; ETSI: 60dB @ 12.5KHz / 70dB @ 20&25KHz
Spurious Response Rejection TIA-603: 70dB @ 12.5/20/25KHz; ETSI: 70dB @ 12.5/20/25KHz
Inter-modulation TIA-603: 70dB @ 12.5/20/25KHz; ETSI: 65dB @ 12.5/20/25KHz
Hum & Noise  40dB @ 12.5KHz 43dB @ 20KHz 45dB @ 25KHz
Rated Audio Power Output 0.5W
Rated Audio Distortion ≤3%
Audio Response +1 ~ -3dB
Conducted Spurious Emission < -57dBm
Environmental Specifications
ESD IEC 61000-4-2 (level 4) ±8kV (contact) ±15kV (air)
American Military Standard MIL-STD-810 C/D/E/F/G
Dust & Water Intrusion IP67 Standard
Humidity Per MIL-STD-810 C/D/E/F/G Standard
Shock & Vibration Per MIL-STD-810 C/D/E/F/G Standard
GPS
TTFF (Time To First Fix) Cold Start <1 minute
TTFF (Time To First Fix) Hot Start <10 seconds
Horizontal Accuracy <10 meters

Small, Sleek, Light

The size is 122 X 54 X 27mm, PC & Metal frame, weight is 310g.

IP67 Compliance
IP67 rated withstanding up to 1m submersion for 30 minutes or more.

Rugged & Reliable
Compliant with MIL-STD-810 C/D/E/F/G standards.

Pseudo Trunk
This virtual trunking feature allocates a free timeslot for urgent communications. This effectively enhances frequency efficiency and allows you to communicate in a timely manner in emergency situations.

Full Band
Expanded frequency range of 400-527MHz.

Dual Mode (Analog & Digital)
Dual mode (analog & digital) operation ensures a smooth analog to digital migration.

Secure Communication
Provides basic/advanced digital encryption and Scrambler feature in analog mode.

Advanced Signaling
Supports multiple advanced analog signaling modes, including HDC1200, 2-Tone and 5-Tone, providing better integration into existing analog radio fleets.

DMRA Data Service
The data protocol is fully compliant to DMRA standard.

GPS Positioning (Factory Option)
The built-in GPS module supports GIS applications.

Man Down (Factory Option)
When a user falls down, the radio can automatically alert others.

Further Development Port
The reserved side port in PD66X allows users or any third party partner to further develop other helpful applications to extend radio functionalities.

One Touch Call/Text
Supports One Touch features that comprise of Preprogrammed Text Messages, Voice Calls and Supplementary Features.

Supplementary Features
PD66X provides radio enable/disable (only decode), remoter monitor (only decode) and Priority Interrupt.

Radio Priority-Based Interruption
Enable an administration or manager radio to interrupt calls for emergency or urgent communication.

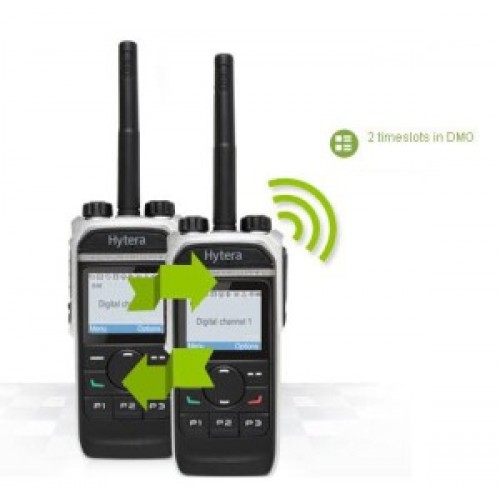

DMO True 2-Slot
In DMO Hytera can provide 2-slot communication, which allows for 2 talk paths on 1 frequency.
