Furuno Radar 1623

Brand: Furuno
Product Code: Furuno Radar 1623
Availability: In Stock

Price: IDR23,500,000

Qty:

- OR -

Description Reviews (0)

Consists Of

Model / Part #

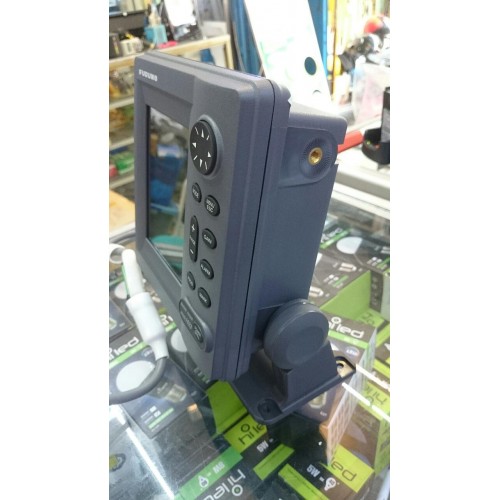

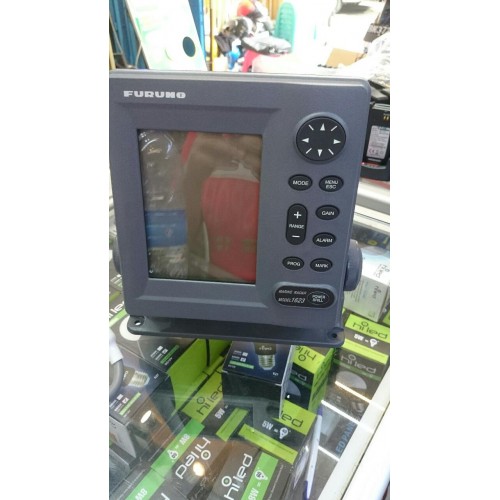

1623DISP	6 Inch Monochrome LCD Display, with Standard Accessories

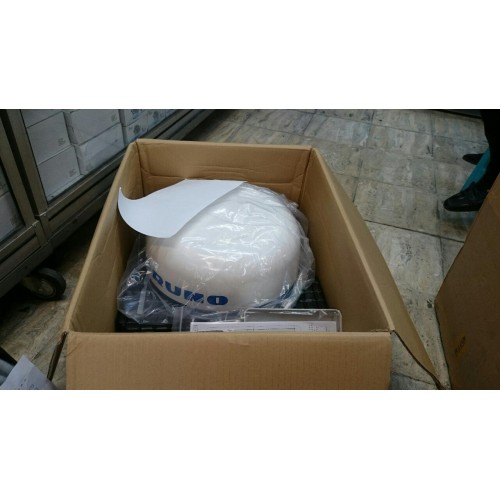

RSB0093-074	15 Inch Radome with 2.2 kW Transceiver
001-122-790	10 Meter Signal Cable Assembly

Standard Features

Waterproof, 6 Inch Silver Bright Monochrome LCD Display
13 User Selectable Range Scales from 1/8 to 16 N.M.
Ergonomic design with predictable menu
Display Resolution of 240(H) X 320(V) Dots
Targets Displayed in up to 4 Levels of Gray Tones
2.2 Kilowatt Transmitter Unit
New Tri-speed 15" radome antenna, increases RPM at short ranges for better target accuracy
3 Transmitter Pulse lengths and Repetition Rates
Linear Receiver with 10 dB Noise Figure
Automatic Receiver Tuning
Automatic or Manual Sea-Clutter (STC) Adjustment
Automatic or Manual Receiver Gain Adjustment
Sector Blanking
Rain Clutter (FTC) Control
Echo Stretch and Interference Rejection Modes
Watchman Mode to control the Radar system for Vessel Safety
Reverse Video Display (White Targets and Marks on a Black Background)
Full Screen Navigation Data Display in the Standby Mode*
Omni Pad Control for rapid Cursor and Menu Operation
Picture Off-Center Shift
Electronic Bearing Line and Variable Range Marker
Target or Echo Trails with Selectable Time Intervals
Waypoint Lollipop On-Screen to aid in Vessel Navigation*
Adjustable Duplex (In or Out) Radar Guard Zone Alarm
TLL (Target Lat/Lon) output for use with plotter (must accept TLL sentence info)*
Time offset adjustment
[PROG] key provides menu shortcuts
User programmable Nav Data Screens
Ability to connect BBWGPS GPS/WAAS receiver
Wind indication with appropriate sensor input

Shipping Information

Power Requirements

Notes
